SAWSTOP  |  SKU: 876769

SawStop Floating Dust Collectin Guard

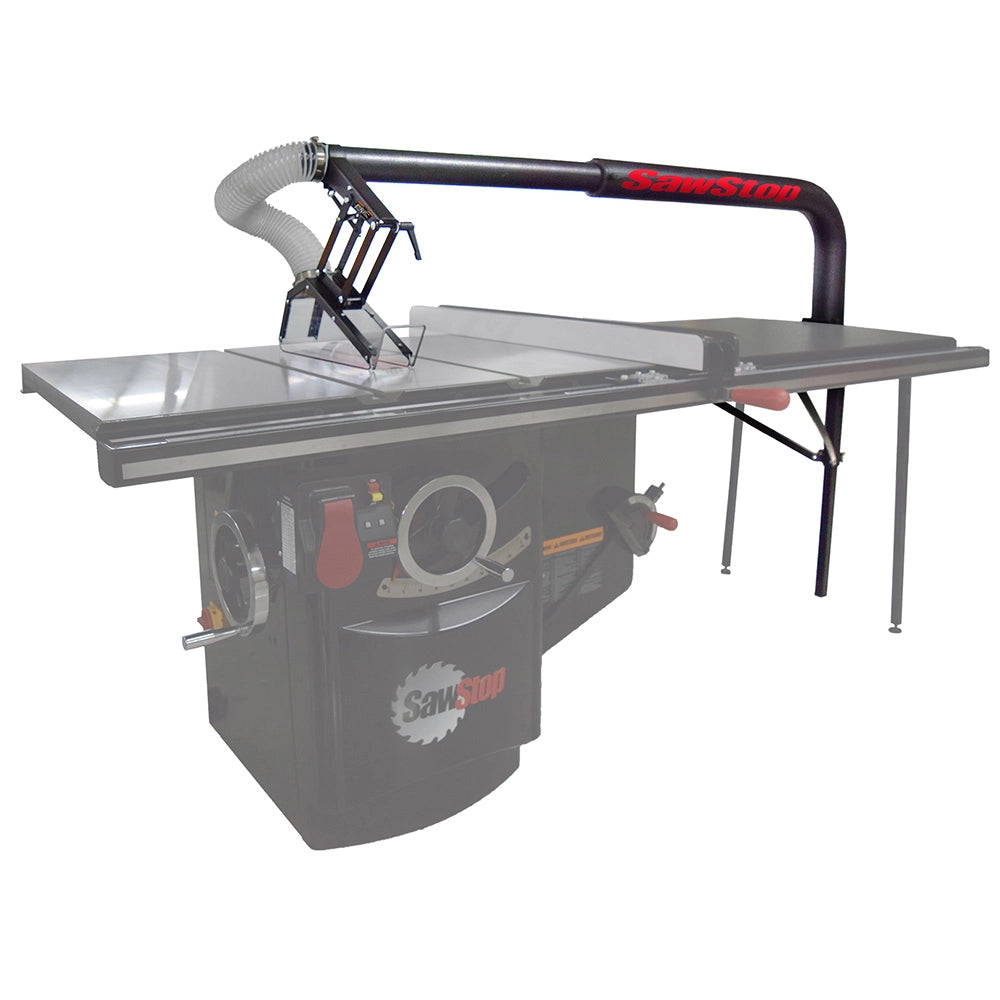

This heavy-duty 4” overarm is designed to provide operator protection while removing table-top dust in both standard and non-through cuts. The transparent blade cover is engineered to lift easily for quick blade access, and the rigid steel overarm swings smoothly away and back into operating position. The wide pipe allows for high air volume collection.

$615.00

Features
  • Blade Guard Dimensions 3 1/2” x 18 1/2”
  • "Distance between blade and end of extenion table 35 3/4” to 68” "
  • "Inner Dust Tube Diameter 3” Outer Dust Tube Diameter 4” "
  • "Outer Dust Tube height above table 13 1/2” Outer Dust Tube height above floor 33 1/2” to 50”"
  • Above Table Dust Collection-The large 4" tube allows for high air
    volume and above-table dust collection keeping harmful dust out of your
    shop. A dedicated 4" extraction port increases dust collection while
    only requiring a minimum of 400 CFM.

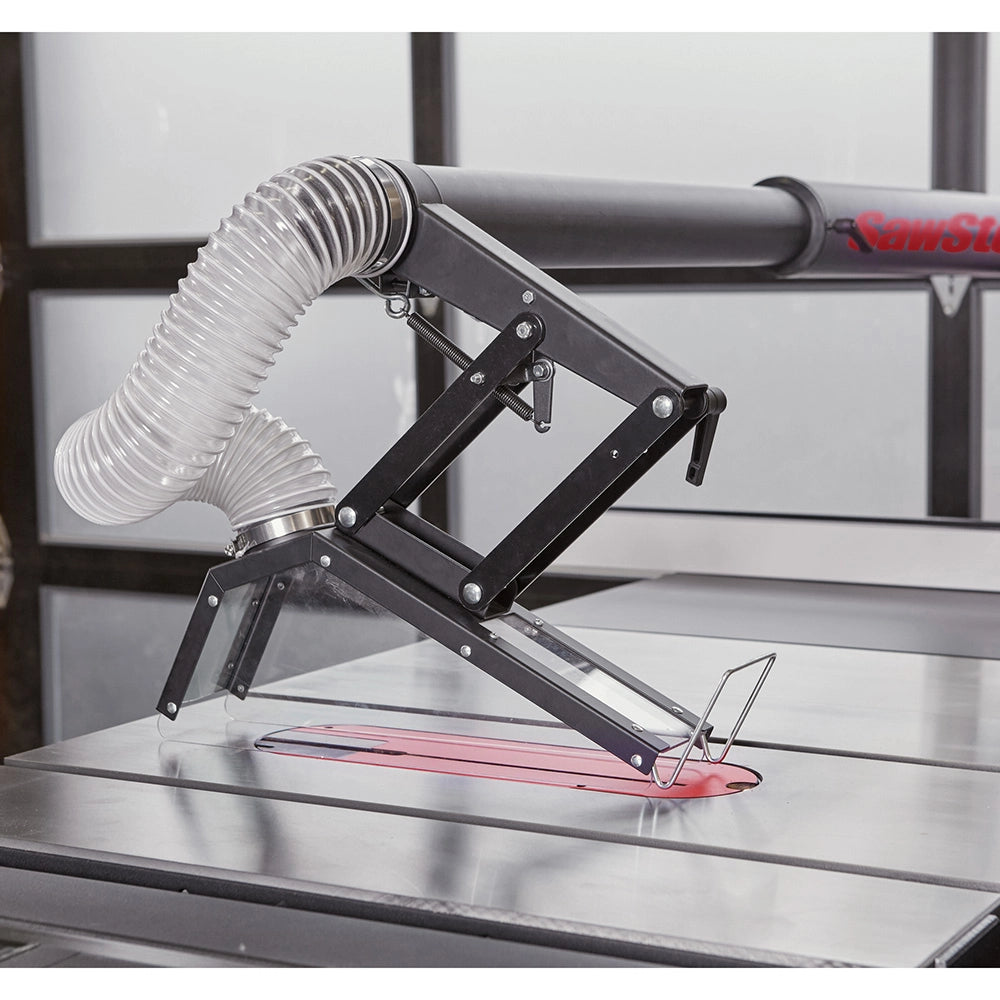

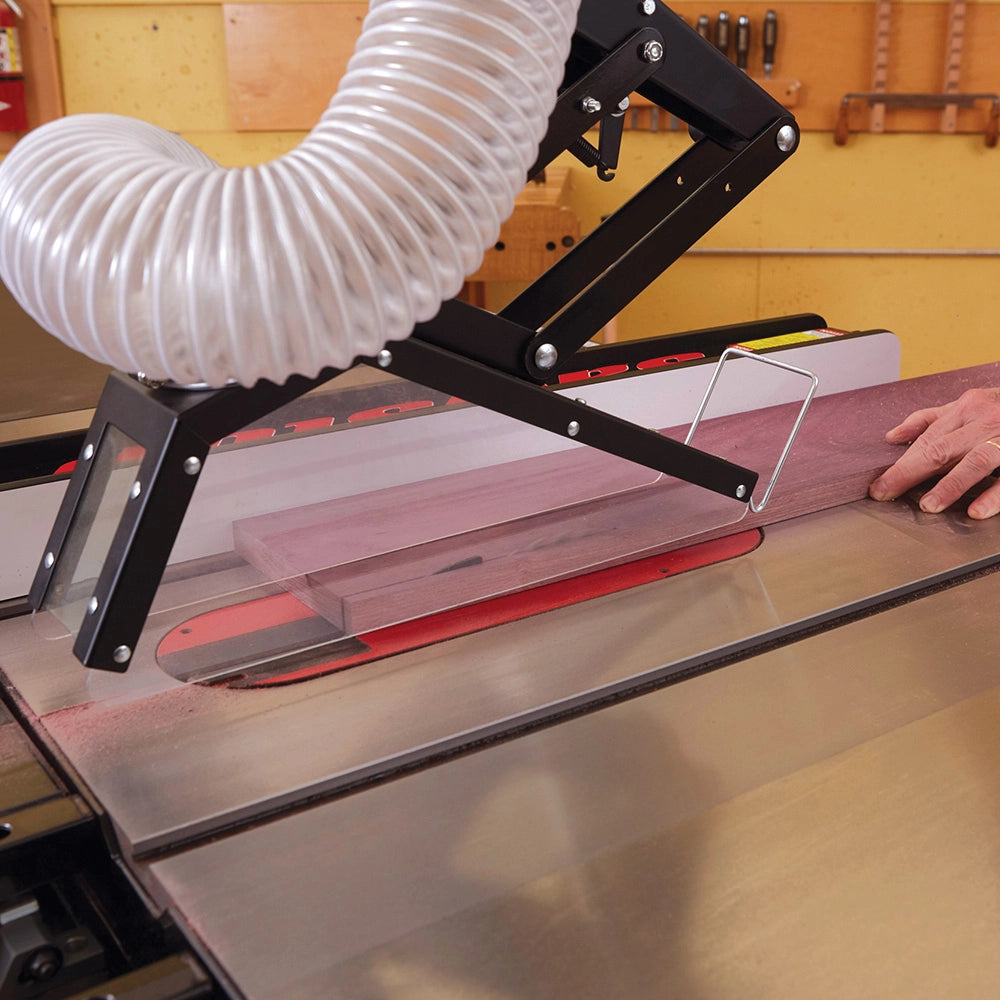

  • Adjustable Blade Guard-The blade guard provides the operator
    protection while making standard and non-through cuts, and the
    transparent cover increases visibility when making narrow cuts. The
    guard lifts easily for quick blade access and locks in place using the
    lock handle when not in use
  • Versatility-The dust collection tube can be easily adjusted to
    accommodate different SawStop cast iron saw configurations. It can be
    moved out of position by releasing the dust tube lock knob, or removed
    and stored when not in use.
  • Rugged Durabilty-The Floating Dust Collection is constructed from
    heavy-duty powder coated aluminum. The support legs connect underneath
    the extension table and ensure the rigidity of the large dust tube and
    blade guard.
  • Please reference the Build+Price tool to confirm compatibility with your saw and accessories.

Included Items
  • extension leg
  • dust collection guard mounting bracket
  • (2) leg support bracket
  • outer dust tube
  • inner dust tube
  • floating dust collection blade guard
  • owner's manual
  • hardware pack

⚠️ WARNING: This product can expose you to chemicals including wood dust, which is known to the State of California to cause cancer. For more information, go towww.P65Warnings.ca.gov.

Specifications

Brand: SawStop

Weight 55.00 lb

Tech Spec:
- Dust Port Diameter: 4"
- Compatible Saws: 36" and 52" versions of CNS, PCS and ICS Saws
- Compatible Mobile Base: ICS Mobile Base

Unit of Measure: Each
